95344747/57/67

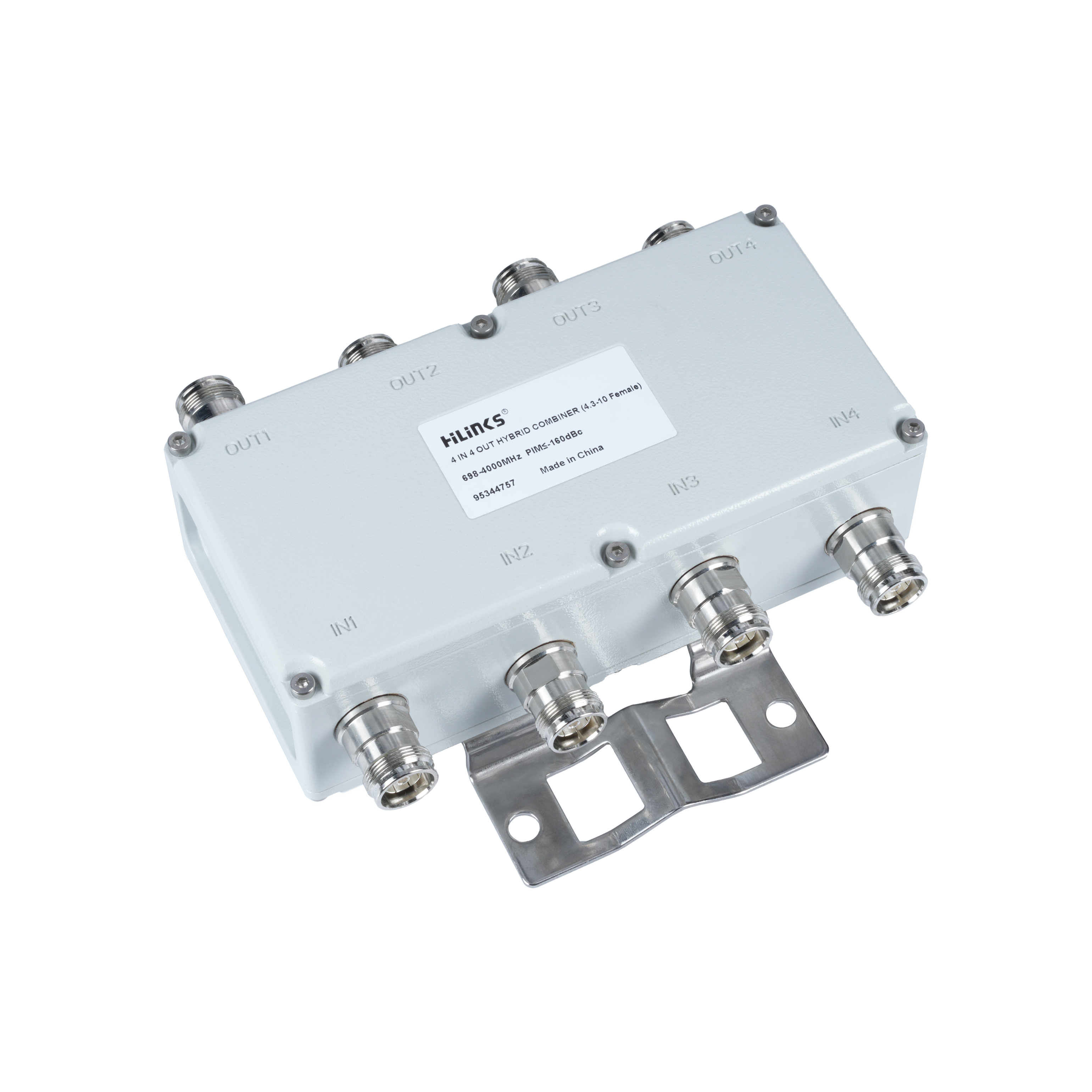

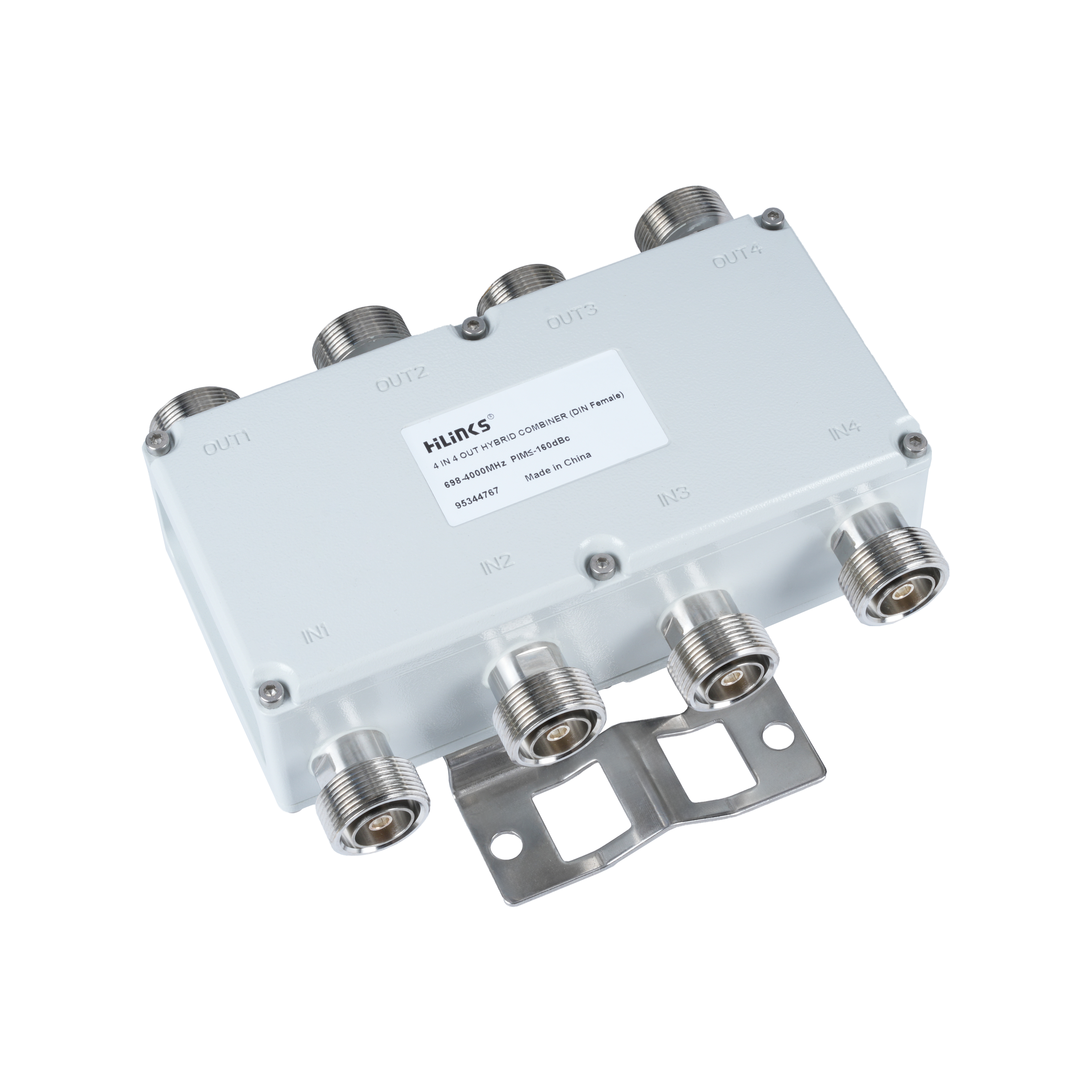

Hybrid Combiner

698-4000MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

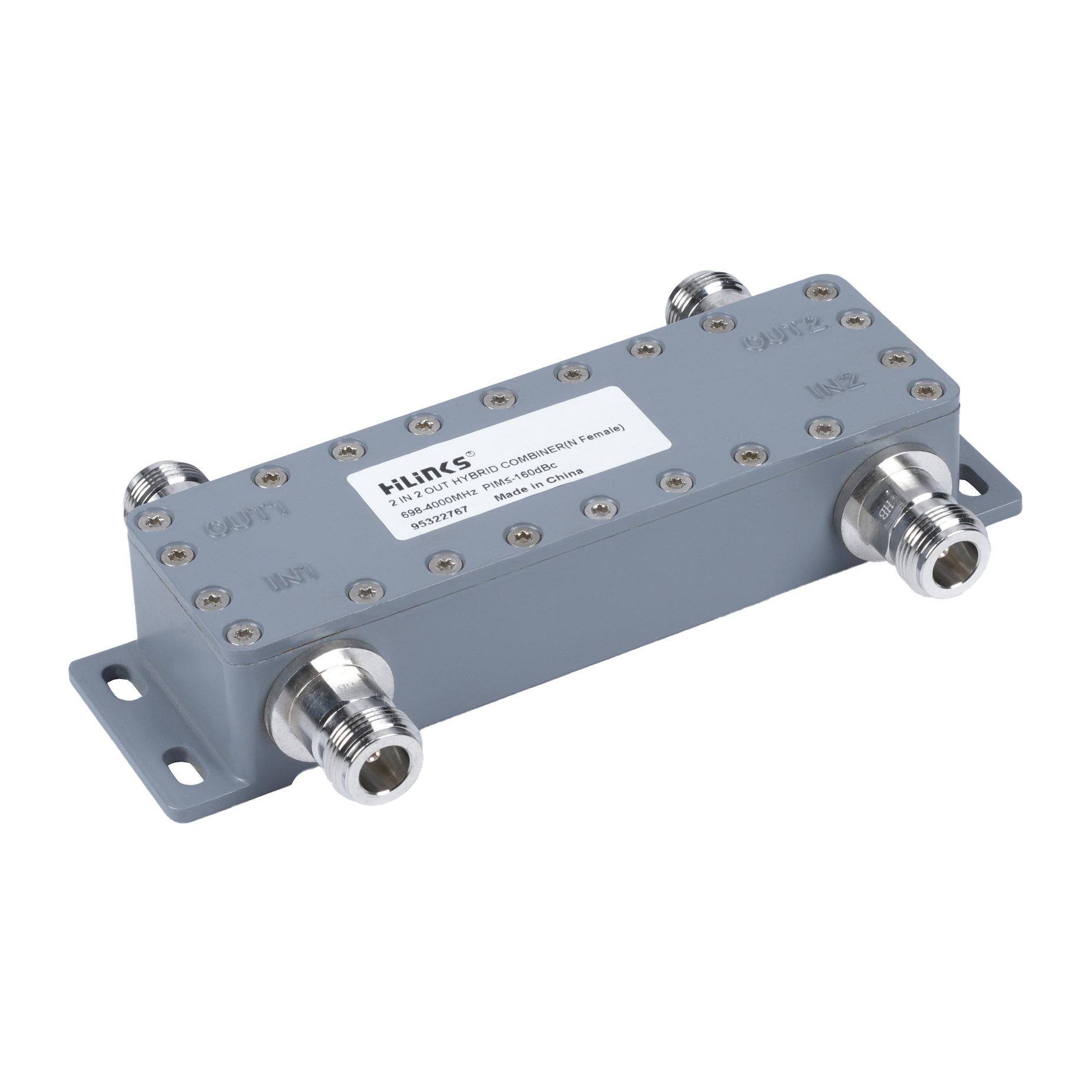

Related Products

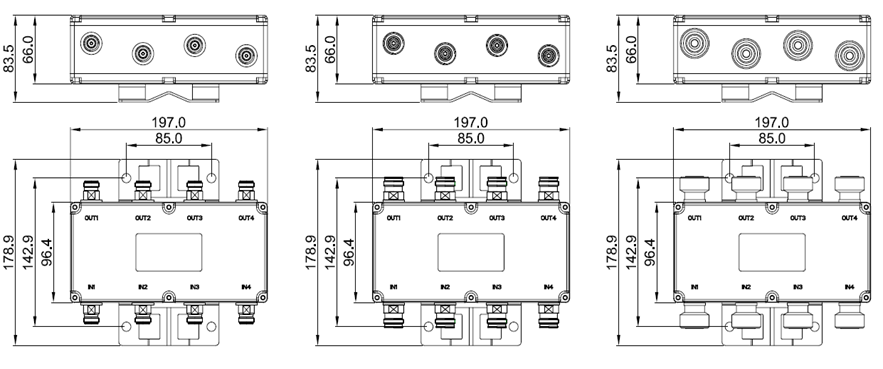

Specifications Outline Drawing

Product Classification

Product TypeHybrid Combiner


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N Female

7-16 DIN Female


Electrical Specifications

Frequency Range, Mhz

698-4000 Mhz
Insertion Loss, typical, dB

6±1.2 @698-2700

6±1.4 @2700-4000

Return Loss (dB)

≥19 @698-2700

≥18 @2700-4000

Isolation, typical, dB

≥23

Input Power, RMS, maximum, W

≤300 (N Female & 4.3-10 Female)

≤500 (7-16 DIN Female)

3rd Order PIM, typical, dBc

≤-150

≤-155

≤-160


Dimensions

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)

197x96.4x66 mm


Environmental Specifications

Operational Temperature

-40 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)
