Home>Products>Tapper>
952XX107

Tapper

340-6000MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

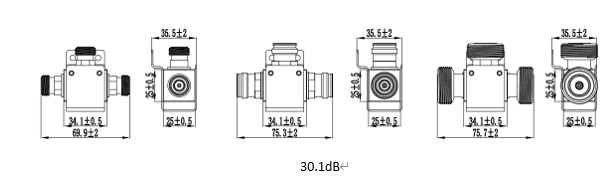

Specifications Outline Drawing

Product Classification

Product TypeTapper


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N  Female

DIN  Female


Electrical Specifications

Frequency Range, Mhz

340-6000 Mhz
Coupling Tolerance (dB)

3dB/4.8dB/6dB/8dB/

8.5dB/10dB


340-520Mhz       ±1.5

698-960Mhz       ±1.3

1710-4000Mhz   ±1.0

5100-6000Mhz   ±1.3


13dB/15dB/

20dB/30dB



340-520Mhz       ±1.5

698-960Mhz       ±1.3

1710-4000Mhz   ±1.0

5100-6000Mhz   ±1.3

Isolation (dB)

3dB                      ≤-14

4.8dB                   ≤-15.6

6dB/8dB/8.5dB/

10dB/13dB/15dB/

20dB/30dB          ≤-18

Input Power, RMS, maximum, W

< 250 (N Female)

< 300 (4.3-10 Female)

< 500 (7-16 Female)

3rd Order PIM, typical, dBc

≤-160


Dimensions

Dimensions (excluding connectors and mounting bracket) (mm)

4.8-20.1dB: 65.5x25x25 mm

30.1dB: 34.1x25x25 mm


Environmental Specifications

Operational Temperature

-40 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP66 (Indoor and Outdoor)



屏幕截图 2024-07-02 164533.png
