Home>Products>Smart Bias Tees (SBT)>
96620387

Smart Bias Tee

698-2700MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

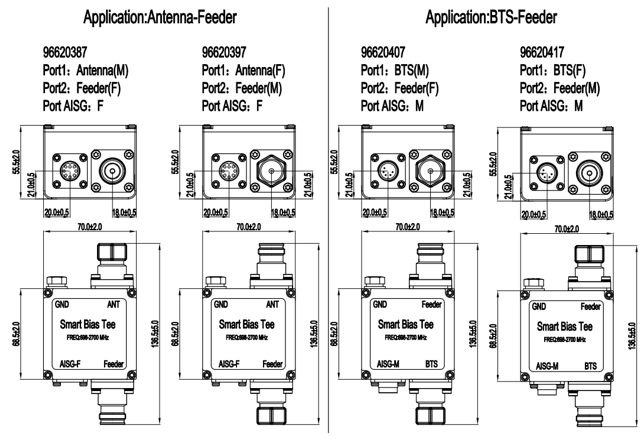

Specifications Outline Drawing

Product Classification

Product TypeSmart Bias Tee


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

Port1(BTS)

Port2(ANT)

Port3(DC)

4.3-10 (F or M)

4.3-10 (F or M)

RS485 (F or M, 8-pin)


Electrical Specifications

Frequency Range, Mhz

698-2700 Mhz
Insertion Loss, typical, dB
Port1 – Port2

≤0.3

VSWR (dB), typical, dB

≤1.25
Power handling, W
Port1 or Port2

≤200W AVG,

2000W Peak


3rd Order PIM, typical, dBc


≤-160



Dimensions

Height

75 mm
Width

72 mm
Depth

45.5 mm


Environmental Specifications

Operational Temperature

-40 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP67 (Indoor and Outdoor)





屏幕截图 2024-07-09 144313.png
