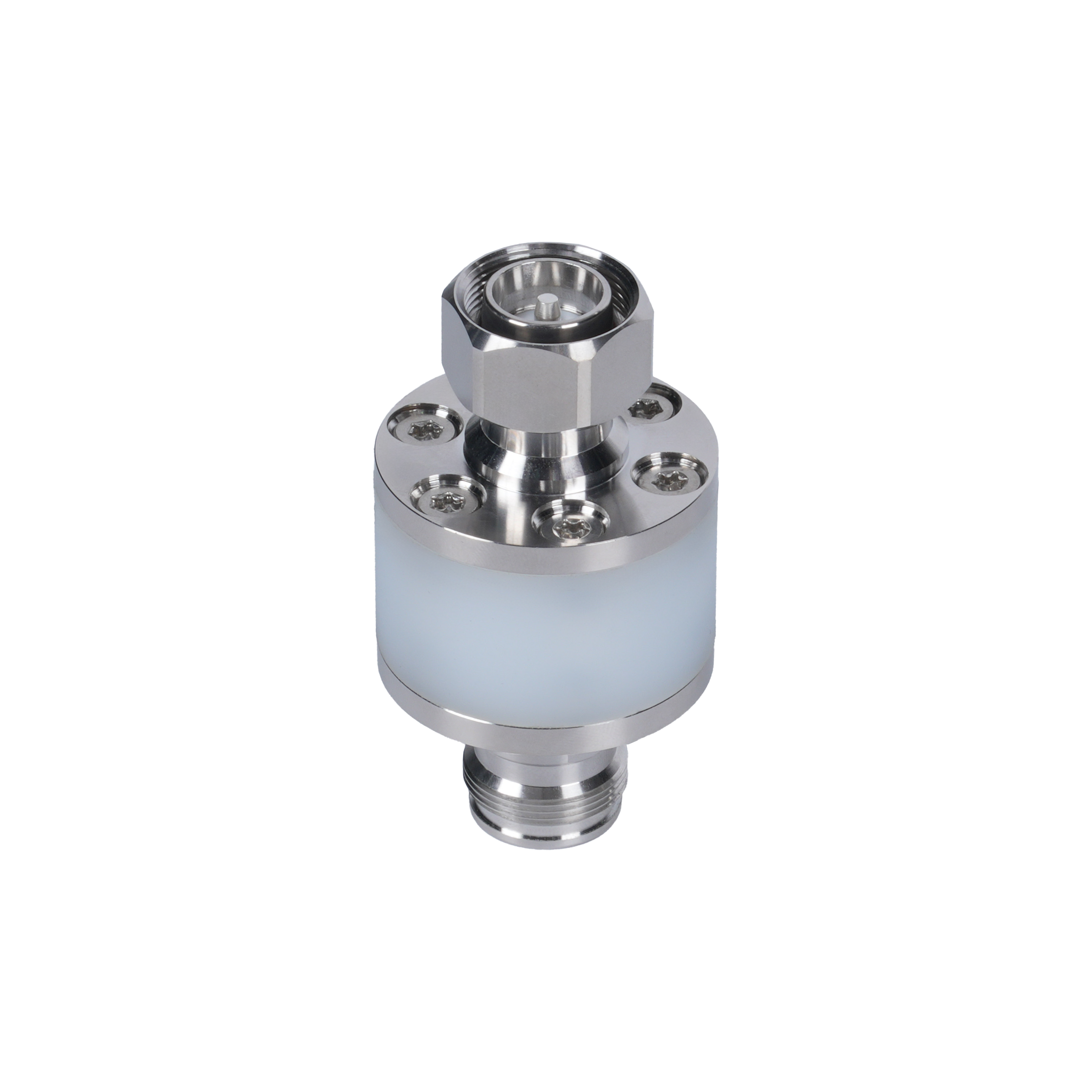

DC Stop

50-6000MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

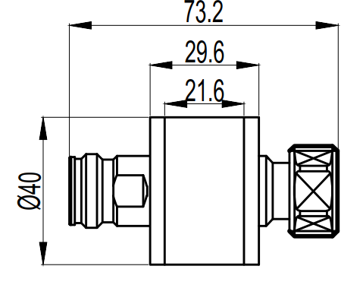

Specifications Outline Drawing

Product Classification

Product TypeDC Stop


General Specifications

Color

metal
Modularity

1-Single
Mounting

plane
RF Connector Interface



4.3-10 (F or M)


Electrical Specifications

Frequency Range, Mhz

50-6000 Mhz
Insertion Loss, typical, dB

≤0.3

VSWR (dB), typical, dB

≤1.2    @50-3000Mhz

≤1.25  @3000-6000Mhz

3rd Order PIM, typical, dBc




≤-160



Dimensions

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)

Ø40x73.2 mm


Environmental Specifications

Operational Temperature

-50 to +85°C
Operational Humidity

≤95%
Ingress Protection Class

IP67 (Indoor and Outdoor)




屏幕截图 2024-07-10 135741.png
