Home>Products>Hybrid Combiner>
95322087/107/127

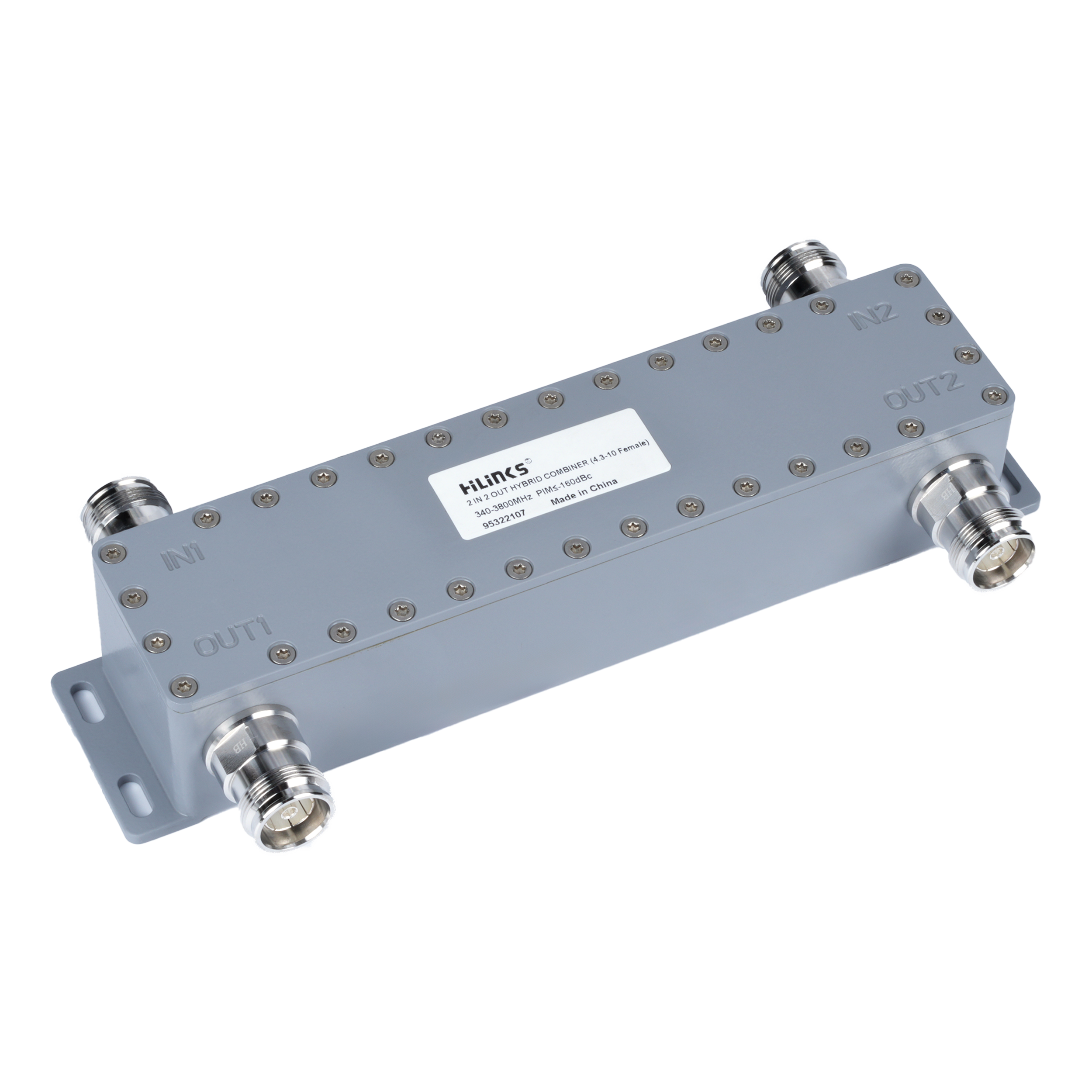

Hybrid Combiner

340-3800Mhz/2IN-2OUT Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products


Specifications Outline Drawing

Product Classification

Product TypeHybrid Combiner


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N Female

7-16 DIN Female


Electrical Specifications

Frequency Range, Mhz

340-3800 Mhz
Insertion Loss, typical, dB

3.1±1.2 @340-698

3.1±0.6 @698-3800

VSWR (dB), typical, dB

< 1.25
Isolation, typical, dB

≥26
Input Power, RMS, maximum, W

<300 (N Female & 4.3-10 Female)

<500 (7-16 DIN Female)

3rd Order PIM, typical, dBc

≤-150

≤-155

≤-160


Dimensions

Height

226.9 mm
Width

48.6 mm
Depth

42.5 mm


Environmental Specifications

Operational Temperature

-35 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)
