9631028X

Filter

895-905/940-950MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

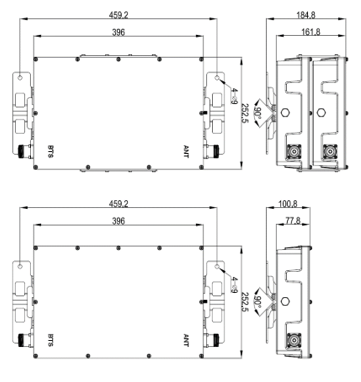

Specifications Outline Drawing

Product Classification

Product TypeFilter


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single

2-Double

Mounting

Pole or Wall Mounted
RF Connector Interface

7-16 Female


Electrical Specifications

Frequency Range, Mhz

895-905&

940-950 MHz

Insertion Loss, typical, dB

≤1.5@895-896.5MHz

≤0.6@896.5-905MHz

≤0.5@940-950MHz

Rejection (dB)

≥45@895-905MHz

Return Loss (dB)

≥19
Input Power, RMS, maximum, W

≤200
3rd Order PIM, typical, dBc

≤-160


Dimensions

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)

Single:396X252.5X77.8 mm

Double:396x252.5x161.8 mm


Environmental Specifications

Operational Temperature

0 to +55°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)





屏幕截图 2024-06-17 145149.png
