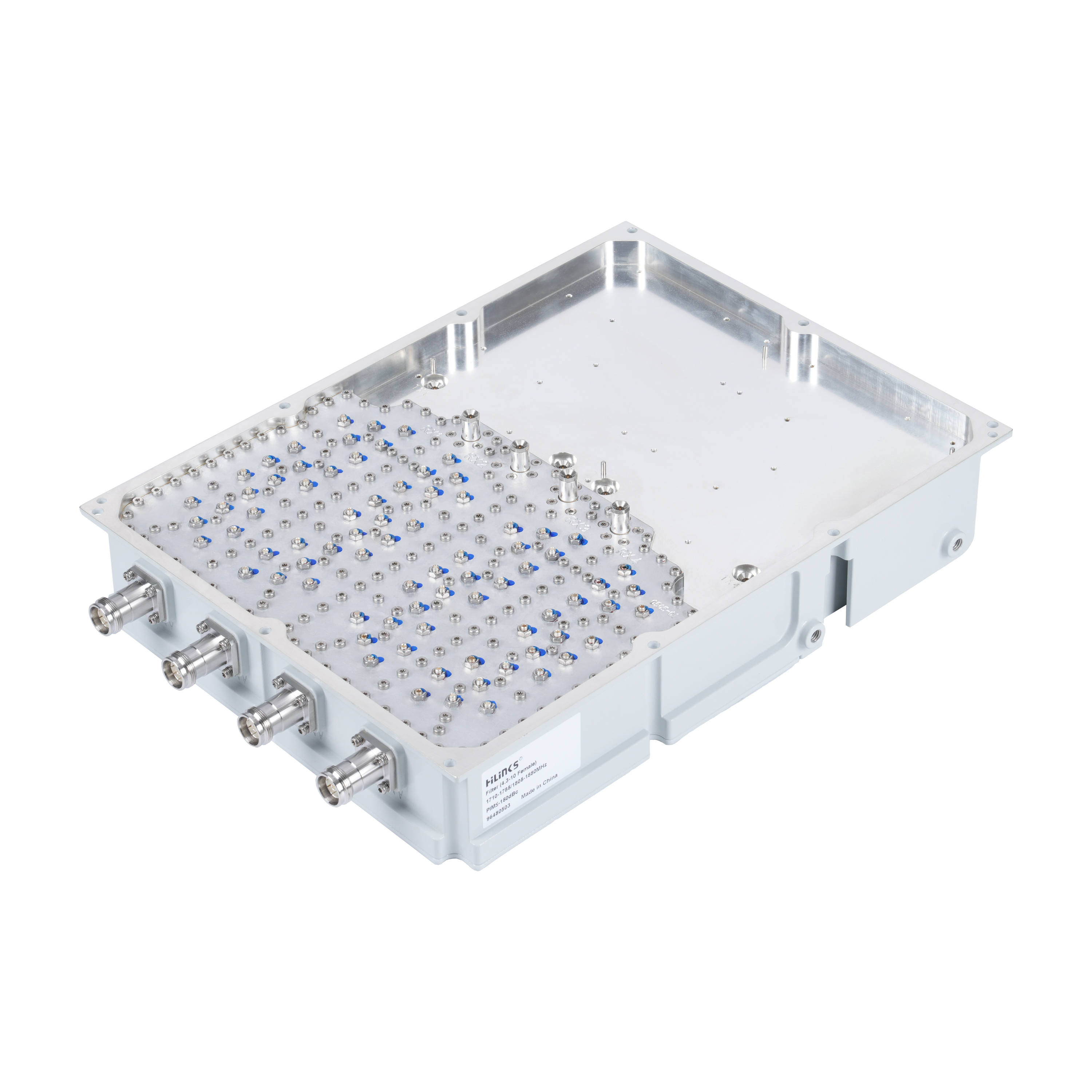

96480503

Filter

1710-1785/1805-1880MHz
Add To Favorites
Area:
Amount:

+ -

In Stock:9999

Support Hotline:


Product Classification

Product TypeFilter


General Specifications

Color

RAL7035 (Light Gray customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

ANT Port:

4.3-10 Female,

other Port: PSMP


Electrical Specifications


RX
TX
Frequency Range, Mhz
1710-1785MHz1805-1880MHz
Insertion Loss, typical, dB

≥1.18@1710-1785MHz,

≥1.07@1710-1785MHz,

≥1.05@1710-1785MHz,

≥0.95@1710-1785MHz,

≥0.9@1715-1780MHz,

≥0.8@1715-1780MHz,


≥1.5@1805-1880MHz,

≥1.4@1805-1880MHz,

≥1.3@1805-1880MHz,

≥1.2@1805-1880MHz,

≥1.1@1810-1875MHz,

≥1.0@1810-1875MHz,



Return Loss (dB)
16
Rejection (dB)

≥85@1-1559MHz,

≥68@1559-1630MHz,

≥20@1630-1690MHz,

≥86@1805-1880MHz,

≥85@1880-1995MHz,

≥75@1995-2690MHz,

≥65@2690-3800MHz,

≥45@3800-4200MHz,


≥65@1-1710MHz,

≥105@1710-1785MHz,

≥18@1785-1795MHz,

≥18@1890-1900MHz,

≥48@1900-1920MHz,

≥76@1920-1980MHz,

≥65@1980-2750MHz,

≥70@2750-3600MHz,

≥90@3600-3800MHz,

≥30@3800-5430MHz,

≥40@5430-5610MHz,

≥25@5610-9350MHz,

≥10@9350-12750MHz,


Isolation (dB)
≥105

≥86

Branch Isolation (dB)
≥50

≥60

Intermodulation

≤-150dBc@2x20





Impedance (Ω)

52

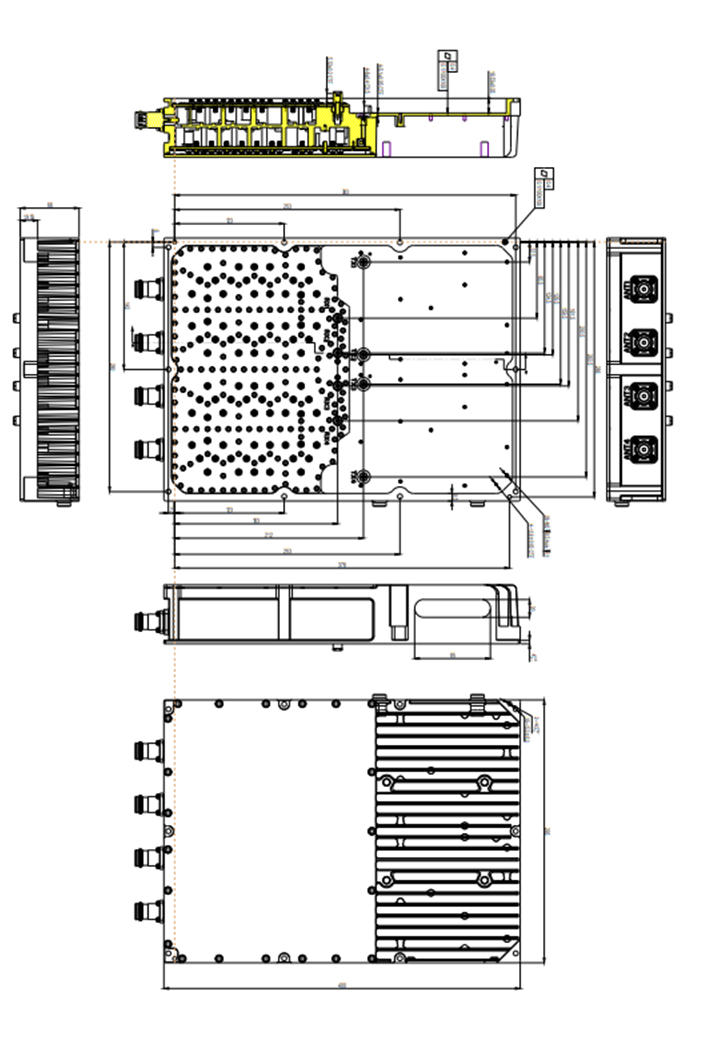

Dimensions

Dimensions (excluding connectors and mounting bracket) (mm)

400x295x66 mm


Environmental Specifications

Operational Temperature

-40 to +90°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)
