Home>Products>Tower Mounted Amplifiers (TMA)>
96520037

TMA

895-905/940-950MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products


Specifications Outline Drawing

Product Classification

Product TypeTMA


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Pole or Wall Mounted
RF Connector Interface

7-16 Female (long neck)


Electrical Specifications



Rx     Tx
Frequency Range, Mhz
895-905 Mhz940-950 Mhz
Insertion Loss, typical, dB
≤2

≤0.5

Return Loss (dB)
≥18≥18


Input Power, RMS, maximum, W
≤1.6

≤200

3rd Order PIM, typical, dBc
≤-160

≤-160

Impedance (Ω)
50

50



Dimensions

Dimensions (excluding connectors and mounting bracket) (mm)

273x265x85.8 mm


Environmental Specifications

Operational Temperature

-40 to 60°C
Operational Humidity

≤95%
Ingress Protection Class

IP67 (Indoor and Outdoor)

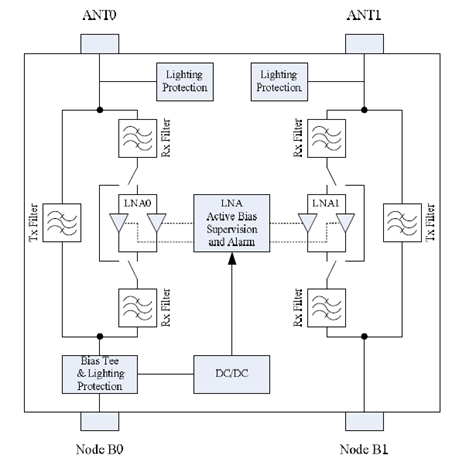

Schematic diagram & Product picture

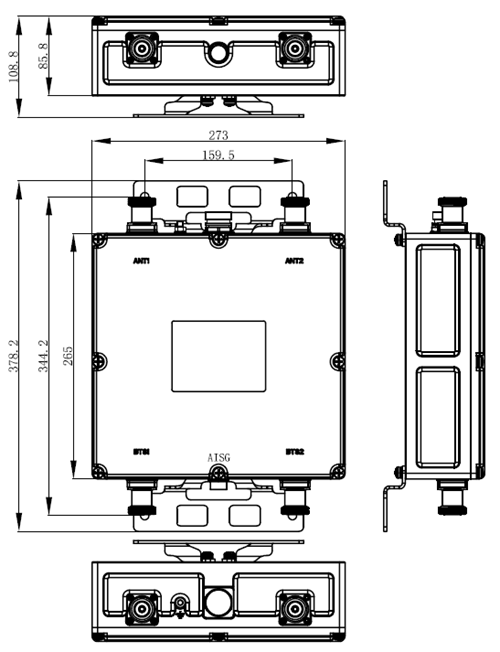

Structure diagram
