96310387

Filter

1710-1735/1805-1830MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

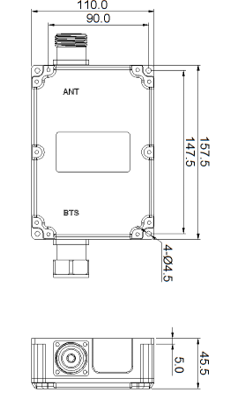

Specifications Outline Drawing

Product Classification

Product TypeFilter


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

7-16 Female (ANT)

& 7-16 Male (BTS)


Electrical Specifications

Frequency Range, Mhz

1710-1735&1

805-1830 Mhz

Insertion Loss, typical, dB

≤1.2

Rejection (dB)

≥45@1790-1795MHz

≥50@1880-1920MHz

Return Loss (dB)

≥20
Input Power, RMS, maximum, W

≤200
3rd Order PIM, typical, dBc

≤-160


Dimensions

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm)

158x110x46 mm


Environmental Specifications

Operational Temperature

0 to +50°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)




屏幕截图 2024-06-17 143901.png
