96332308

Filter

814-897MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

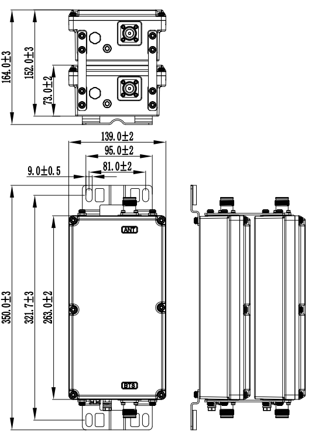

Specifications Outline Drawing

Product Classification

Product TypeFilter


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Pole or Wall Mounted
RF Connector Interface

4.3-10 Female


Electrical Specifications

Frequency Range, Mhz

814-879MHz
Insertion Loss, typical, dB

≤2.5dB@878-879MHz

≤0.9dB@877-878MHz

≤0.6dB@873-877MHz

≤0.35dB@814-873MHz

Return Loss (dB)

≤-19
Rejection (dB)

≥27dB@880.1-890MHz

Input Power, RMS, maximum, W

≤80@878.5-879MHz

≤100@814-878.5MHz

3rd Order PIM, typical, dBc

≤-160

Impedance (Ω)

50


Dimensions

Dimensions (excluding connectors and mounting bracket) (mm)

263x139x152 mm


Environmental Specifications

Operational Temperature

0 to 45°C
Operational Humidity

≤95%
Ingress Protection Class

IP67 (Indoor and Outdoor)







屏幕截图 2024-06-19 111848.png
