95632025

POI

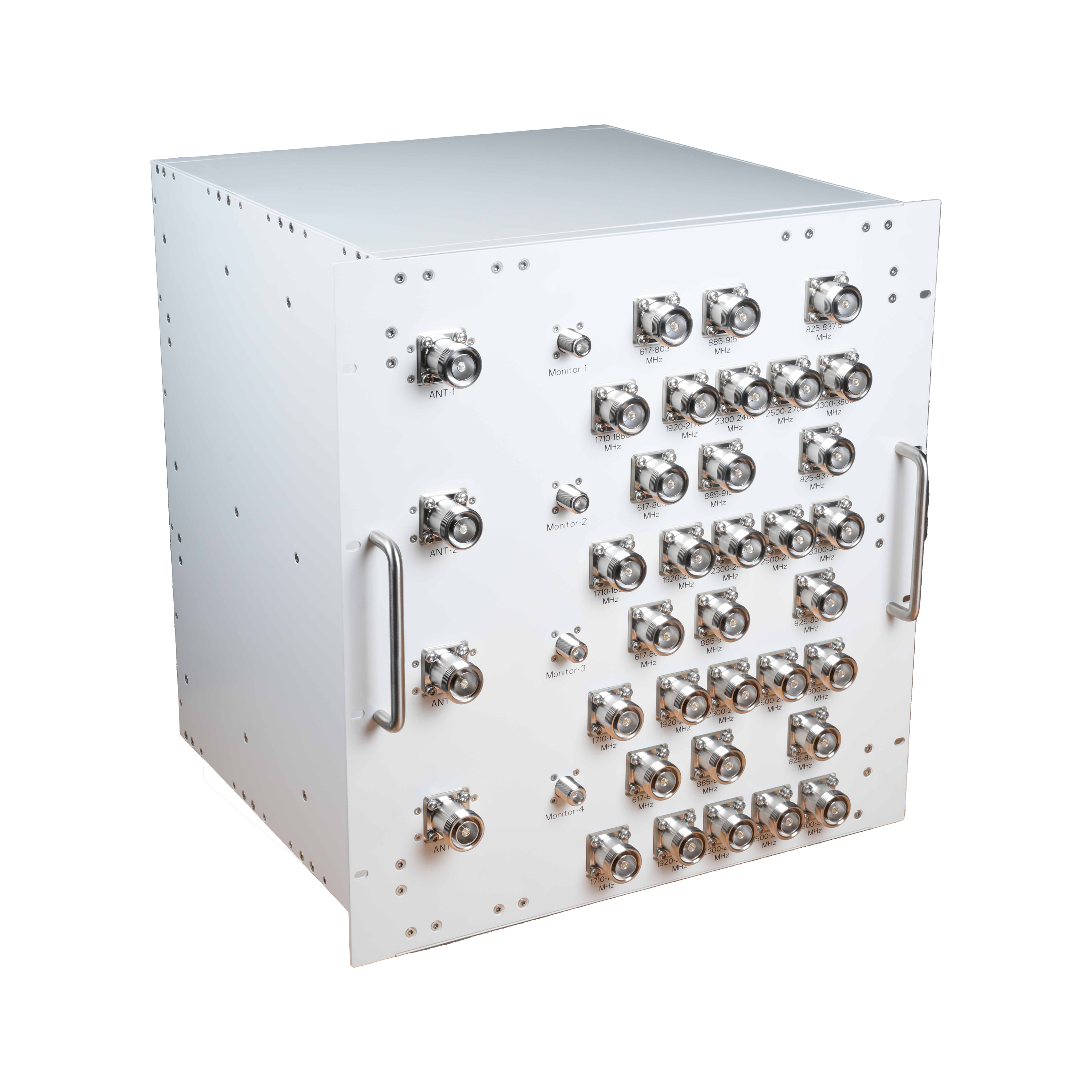

617-3800MHz 32In-4Out-RX Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

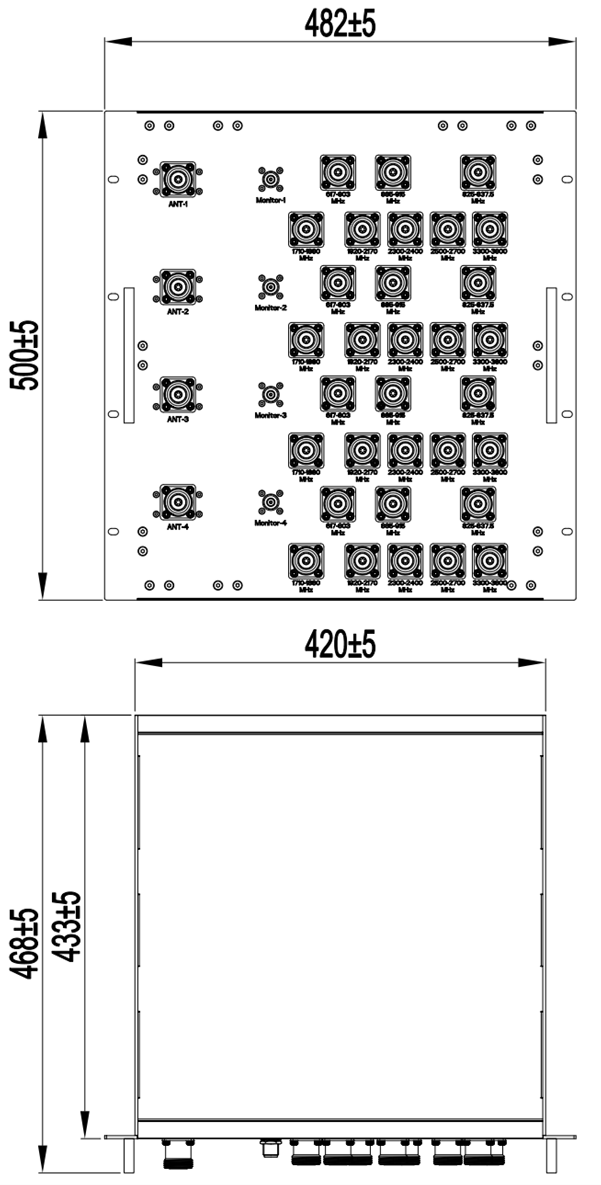

Specifications Outline Drawing

Product Classification

Product TypePOI


General Specifications

Color

Gray (customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female


Electrical Specifications

Frequency Range, Mhz

617-3800Mhz
Insertion Loss, typical, dB

≤9.5@600&700Band

≤10.0@850&900Band

≤9.7@Other Band

Isolation between Bands (dB)

≥22
Isolation Cross Bands(dB)

≥50@850 to 900 Band ≥80@other Band
Input Power, RMS, maximum, W

≤150(average)

/1000(Peak)@ANT

3rd Order PIM, typical, dBc

≤-155


Dimensions

Height

500mm
Width

482mm
Depth

433mm


Environmental Specifications

Operational Temperature

-10 to +55°C
Operational Humidity

≤95%
Ingress Protection Class

IP40 (Indoor)
