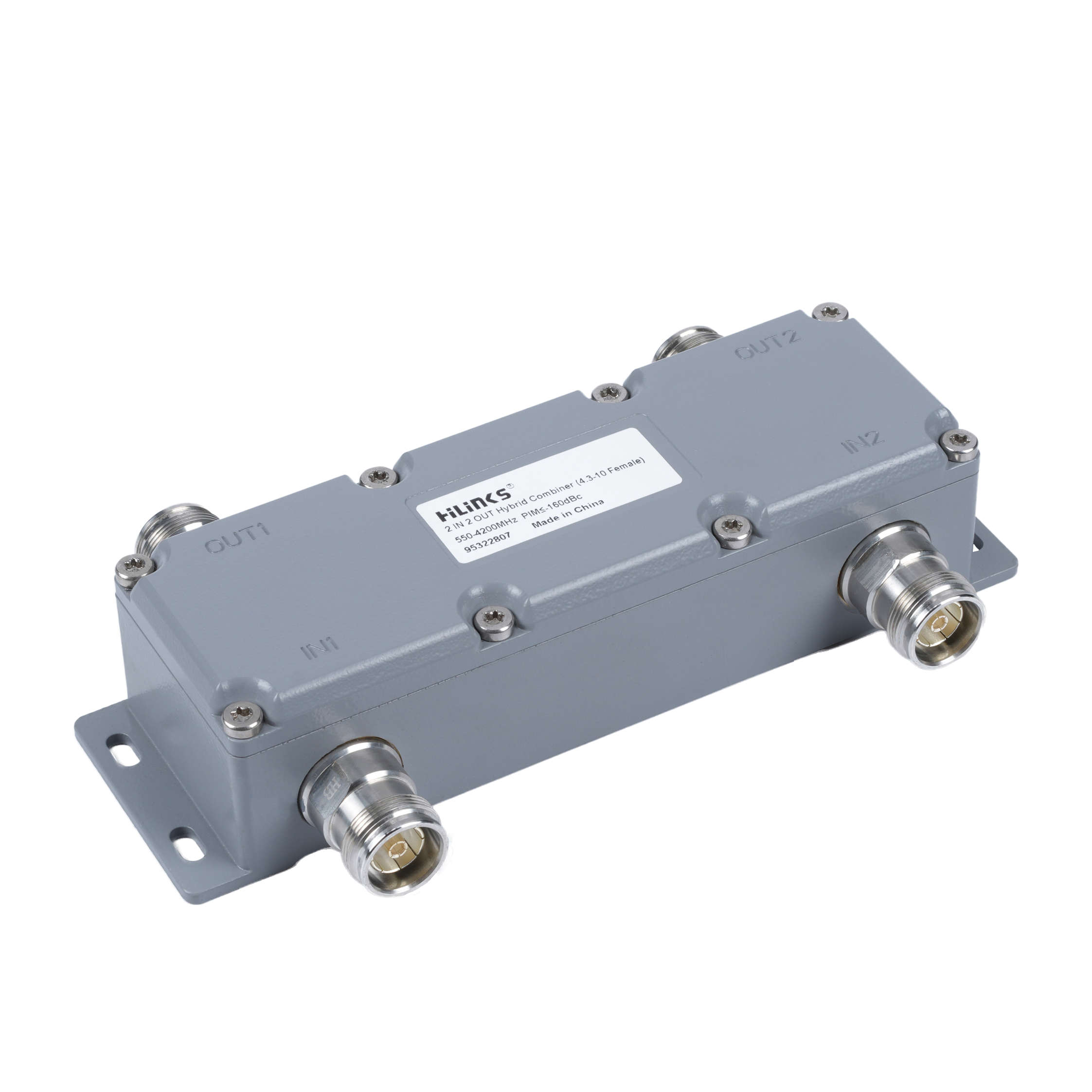

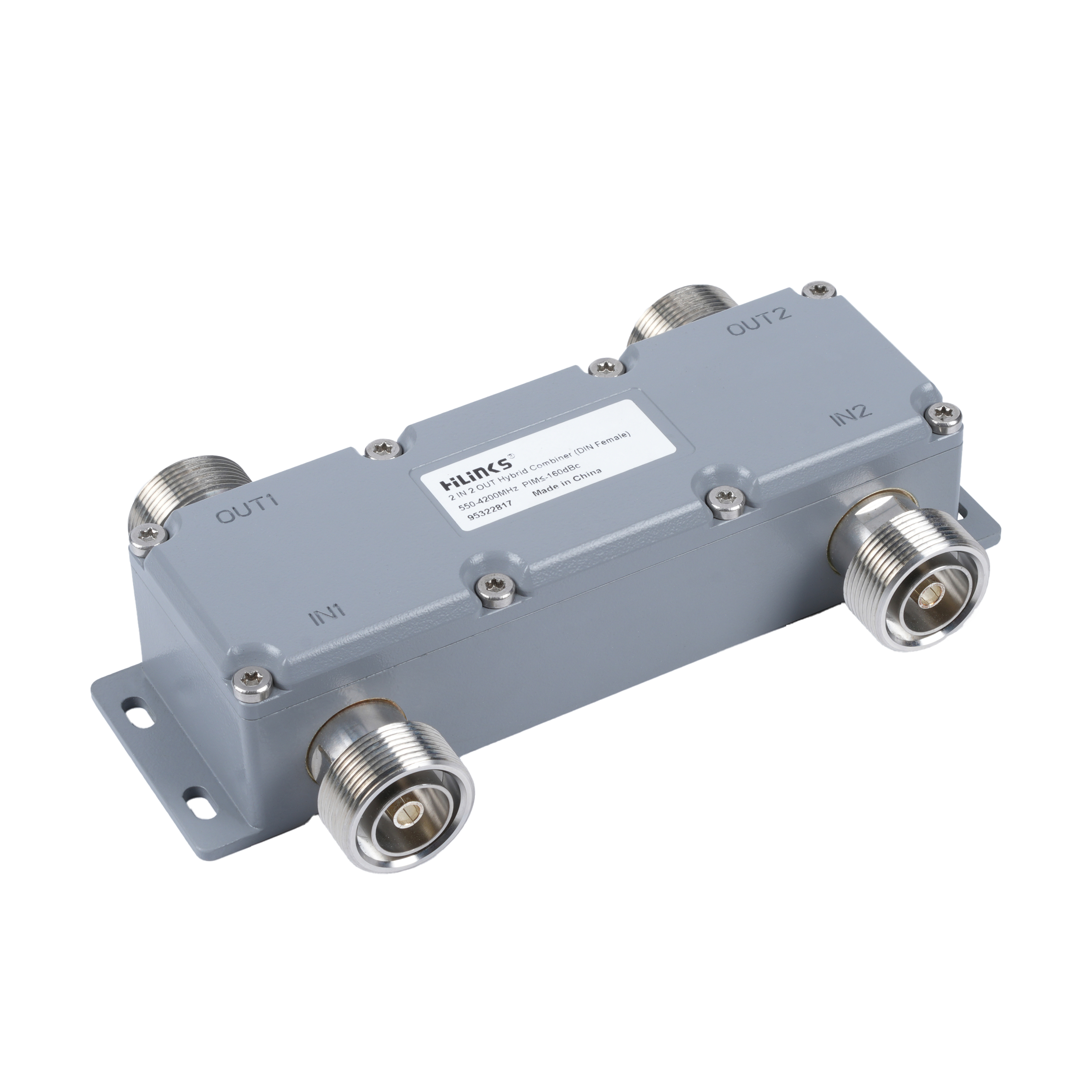

95322797/807/817

Hybrid Combiner

550-4200MHz/2IN-2OUT Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products


Specifications Outline Drawing

Product Classification

Product TypeHybrid Combiner


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N Female

7-16 DIN Female


Electrical Specifications

Frequency Range, Mhz

550-4200 Mhz
Insertion Loss, typical, dB

3.1±0.6 @550-4200

VSWR (dB), typical, dB

< 1.25
Isolation, typical, dB

≥25
Input Power, RMS, maximum, W

<300 (N Female & 4.3-10 Female)

<500 (7-16 DIN Female)

3rd Order PIM, typical, dBc

≤-150

≤-155

≤-160


Dimensions

Height

167.9 mm
Width

56.4 mm
Depth

43.0 mm


Environmental Specifications

Operational Temperature

-40 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)



屏幕截图 2024-06-18 143155.png
