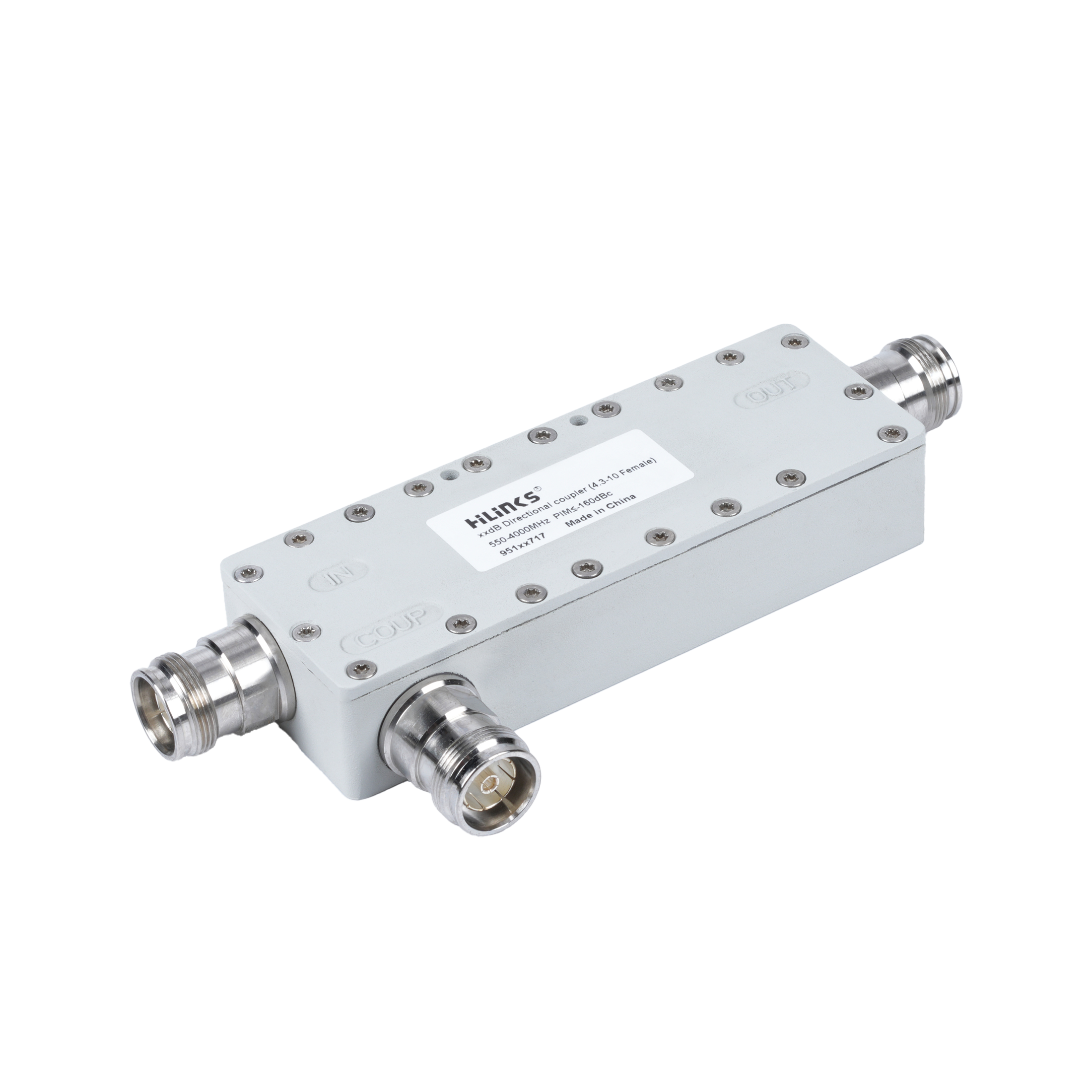

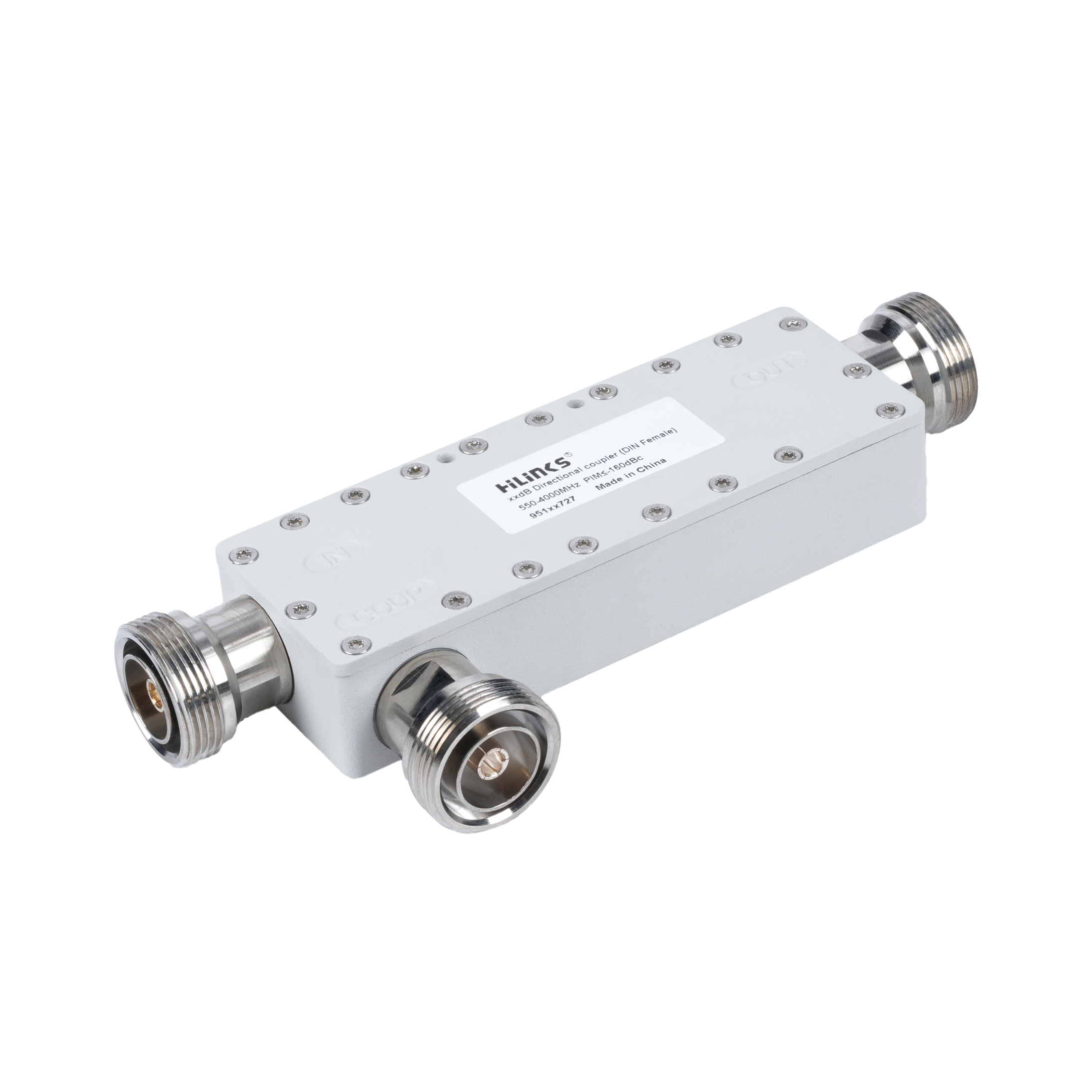

951XX707/717/727

Coupler

550-4000MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

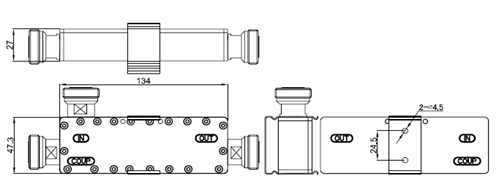

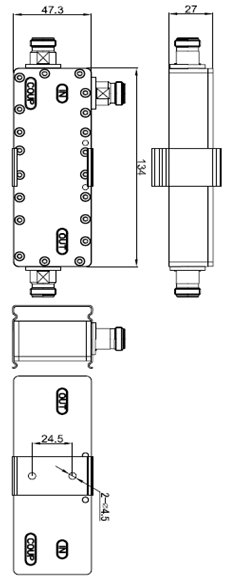

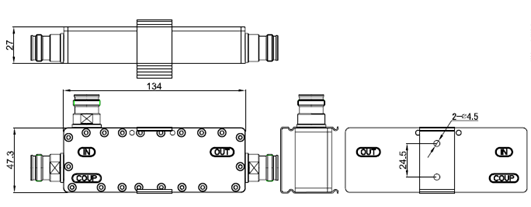

Specifications Outline Drawing

Product Classification

Product TypeCoupler


General Specifications

Color

Light Gray(Customizable)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

4.3-10 Female

N  Female

DIN  Female


Electrical Specifications

Frequency Range, Mhz

550-4000
Insertion Loss, typical, dB

5dB <2.4

6dB <1.8

7dB <1.6

8dB <1.2

10dB <0.8

13dB <0.5

15dB <0.4

20dB <0.3

30dB <0.3

Coupling Tolerance (dB)

5dB/6dB/7dB        ±1.0

8dB/10dB              ±1.2

13dB/15dB            ±1.3

20dB/30dB            ±1.5

Return Loss (dB)

≥21@550-2700

≥19@2700-4000

Isolation(dB)

5dB >25

6dB >26

7dB >27

8dB >28

10dB >30

13dB >33

15dB >35

20dB >40

30dB >50

Input Power, RMS, maximum, W

<300(N/4.3-10 Female)

<500(7-16 DIN Female)

3rd Order PIM, typical, dBc

≤-160

Impedance (Ω)

50


Dimensions

Dimensions(excluding connectors and mounting bracket)(mm)

134x47.3x26


Environmental Specifications

Operational Temperature

-25 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65(Indoor and Outdoor)







7-17 DIN  Female:



N  Female:


4.3-10  Female:
