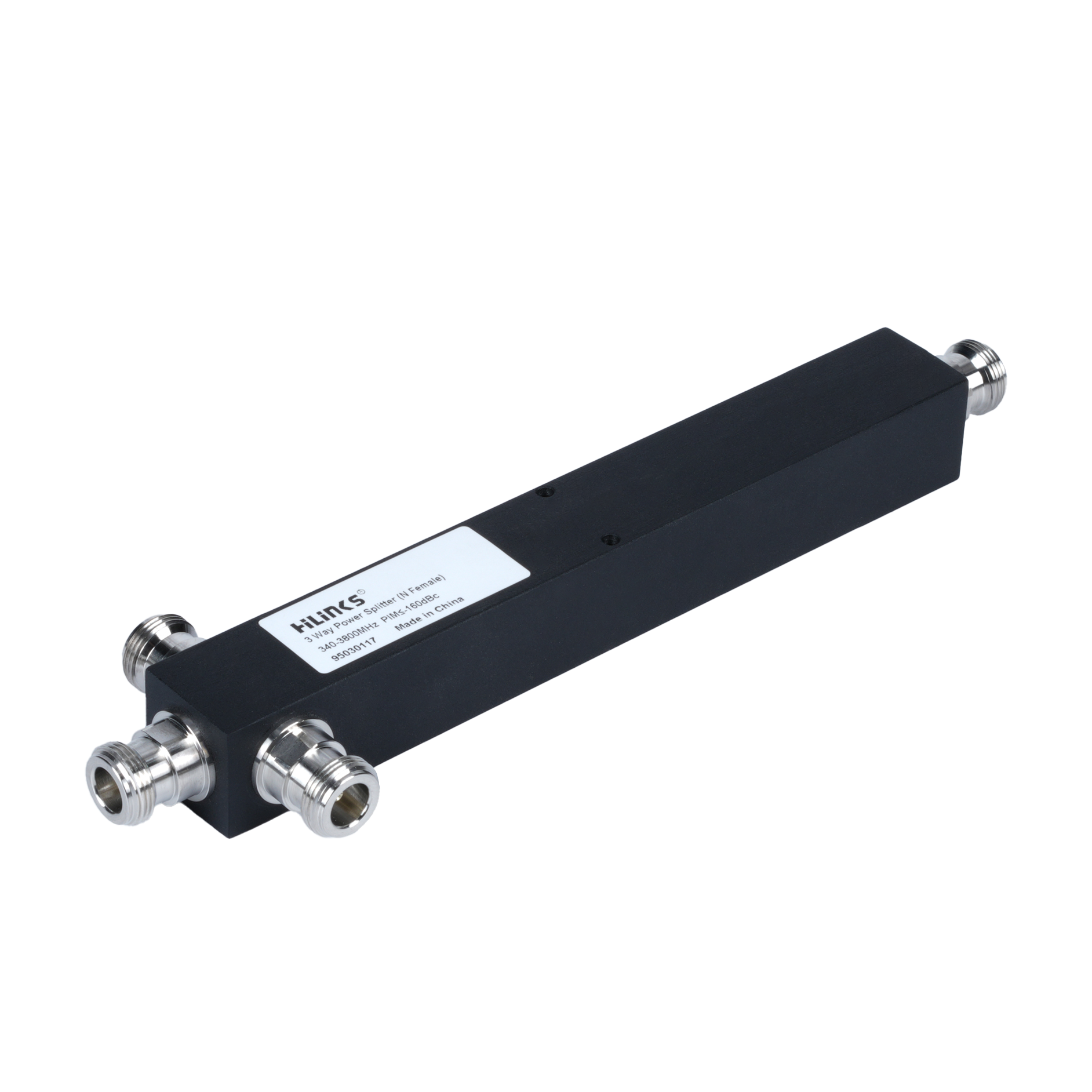

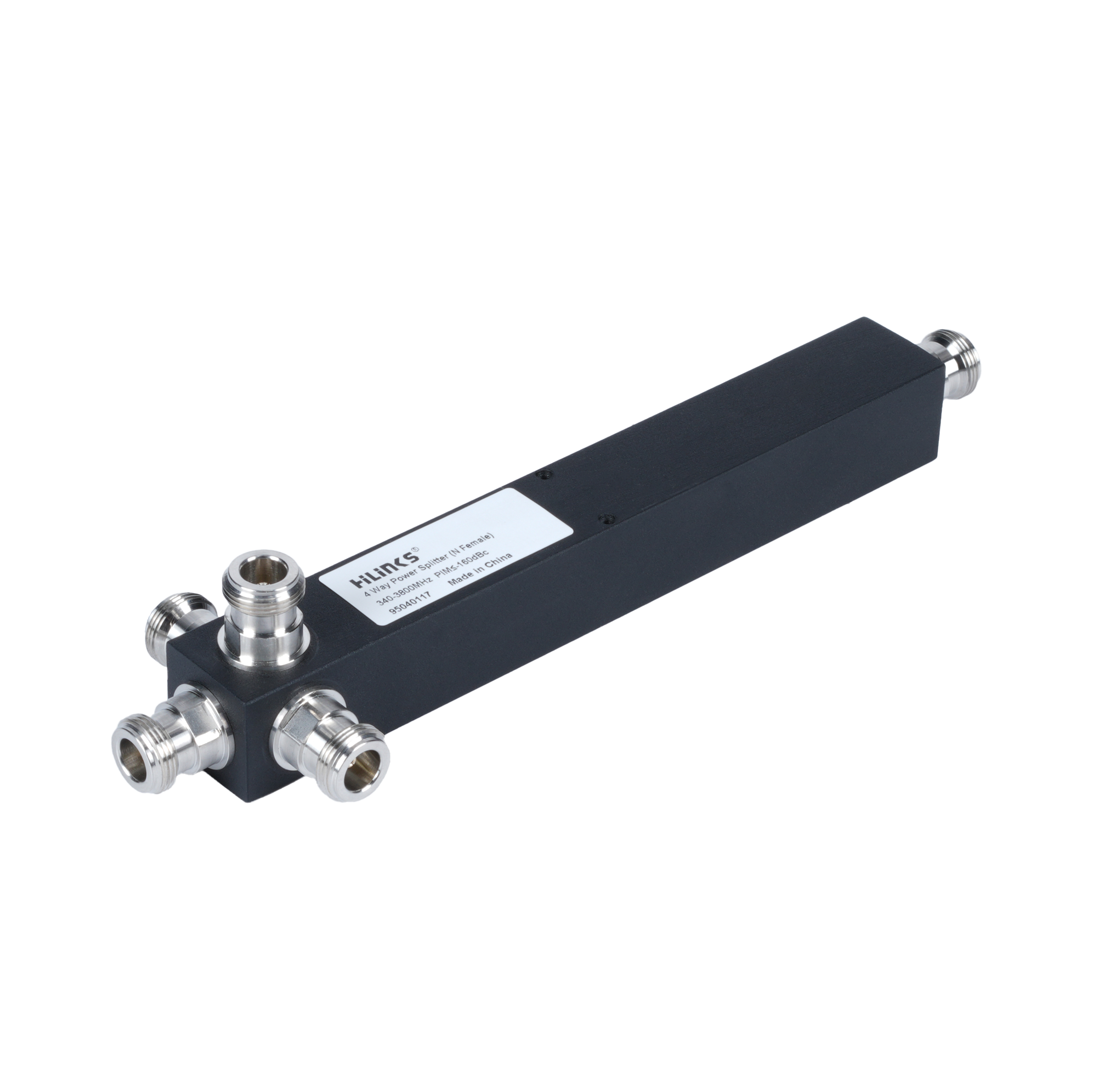

950X0117 N

Splitter

340-3800MHz Add To Favorites
Area:
Amount：

+ -

In Stock：9999
Buy Add To Cart
Downloads(only for member) Register Shopping Process

Support Hotline:

Related Products

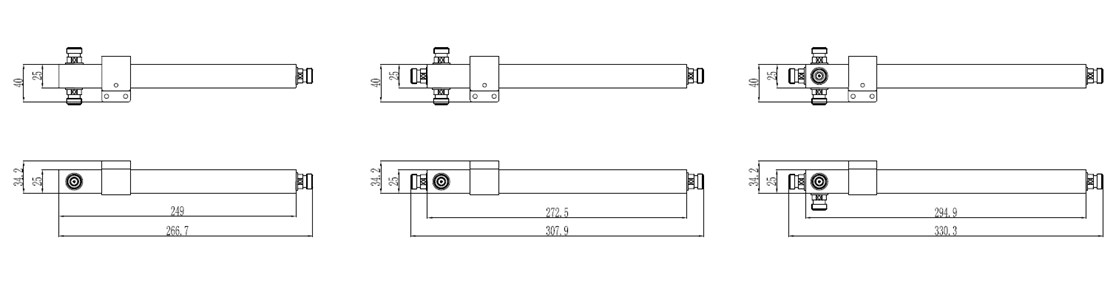

Specifications Outline Drawing

Product Classification

Product TypePower Splitter


General Specifications

Color

Light Gray (Customized)
Modularity

1-Single
Mounting

Wall Mounted
RF Connector Interface

N Female


Electrical Specifications

Frequency Range, Mhz

340-3800 Mhz
Insertion Loss, typical, dB

2-way < 0.3

3-way < 0.6

4-way < 0.6

Return Loss (dB)

≥19 @340-2700

≥18 @3400-3800

Distribution Loss (dB)

2-way < 3.0

3-way < 4.8

4-way < 6.0

Input Power, RMS, maximum, W

≤300
3rd Order PIM, typical, dBc

≤-150

≤-155

≤-160

Impedance (Ω)

50


Dimensions

2-way

249x25x25 mm
3-way

272.5x25x25 mm
4-way

294.9x25x25 mm


Environmental Specifications

Operational Temperature

-25 to +65°C
Operational Humidity

≤95%
Ingress Protection Class

IP65 (Indoor and Outdoor)
